Type 1 Pumpers

Daly City Fire Department Type 1 Pumper

Specifications
  • Spartan Gladiator MFD Flat Roof
  • 5-Person Seating, 166” Wheelbase
  • Cummins ISX15 550HP Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale QMax150 1500 GPM Midship Pump
  • 500 Gallon MTECH Poly Water Tank
  • Custom Equipment Mounting

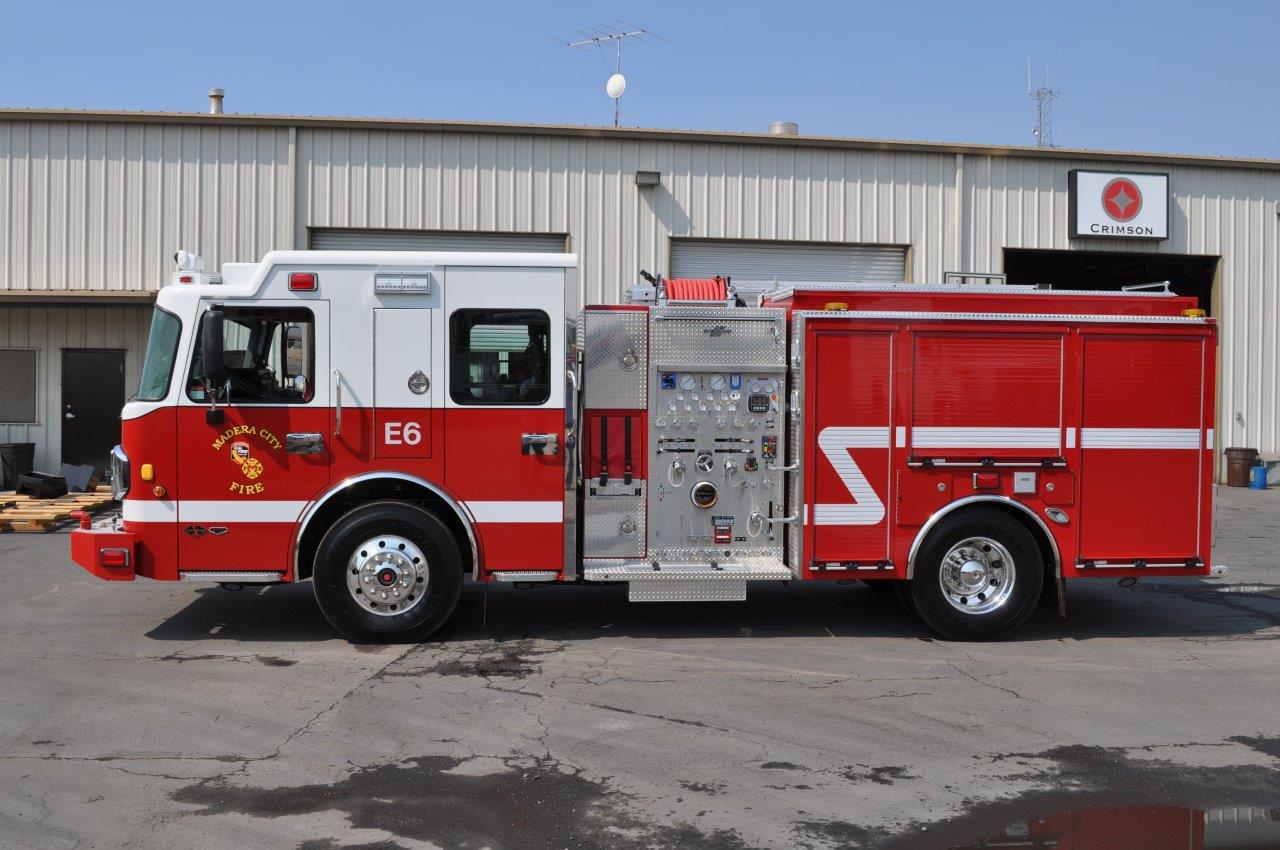

Madera City Fire Department Type 1 Pumper

Specifications
  • Spartan Metro Star SMFD
  • 4 Person Seating, 175” Wheelbase
  • Cummins ISL9 400HP Engine
  • Allison 3000EVS Automatic Transmission
  • Waterous CSUC20D 1500 GPM Pump
  • Waterous E511-C W/ 24HP Kubota Engine Aux Pump
  • 700 Gallon MTECH Poly Tank
  • 30 Gallon Foam Tank
  • Foam Pro 2001 Foam System
Click here to download a line drawing.

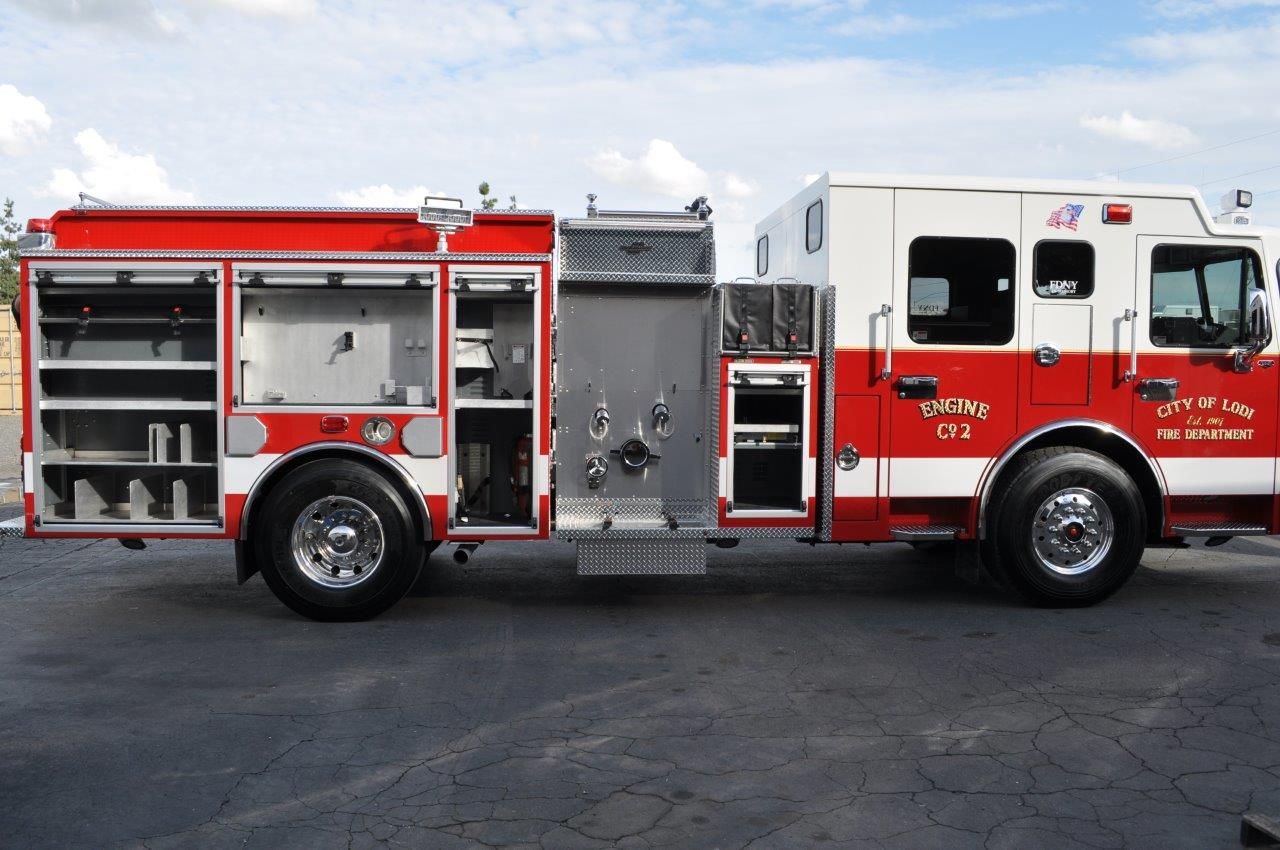

Lodi Fire Department Type 1 Pumpers

Specifications
  • Spartan Gladiator LFD
  • 4 Person Seating, 191” Wheelbase
  • Cummins ISL-9 450HP Engine
  • Allison 3000EVS Automatic Transmission
  • Hale QMax150 1500GPM Midship Pump
  • 500 Gallon MTECH Poly Tank
  • 20 Gallon Foam Tank
  • Foam Pro 2001 Foam System

TRACY FIRE DEPARTMENT TYPE 1 PUMPERS

Specifications

  • Spartan Metro Star MFD Chassis
  • 6-Person Seating, 189” Wheelbase
  • Cummins ISL-9 450 H.P. Engine
  • Allison 3000 EVS Automatic Transmission
  • Waterous CSUC10C 1500 GPM Midship Pump
  • Darley 1.5AGE Kubota Auxilary Pump
  • 750-Gallon MTECH Poly Water Tank
  • One (1) 20-Gallon Foam Tank
  • Foam Pro 2002 Classic “A” Foam System
Click here to download a line drawing.

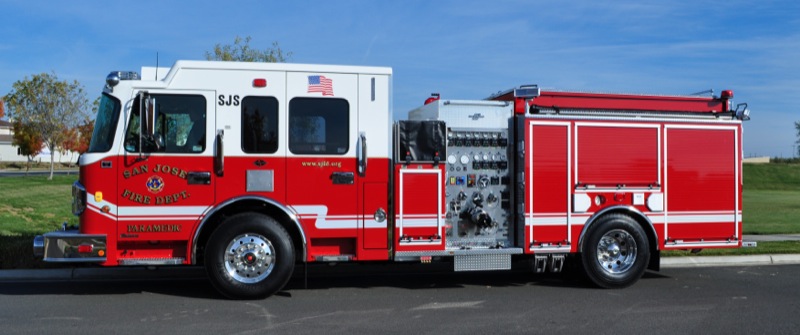

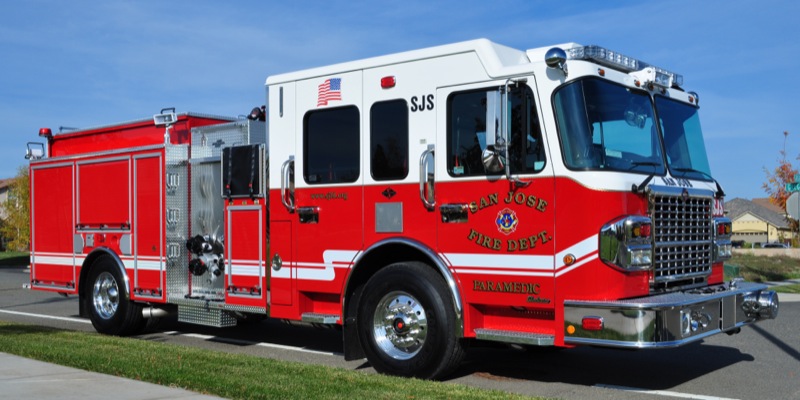

SAN JOSE FIRE DEPARTMENT TYPE 1 PUMPERS

Specifications

  • Spartan LFD Gladiator Chassis
  • 6-Person Seating, 190” Wheelbase
  • Cummins ISX-15 500 H.P. Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale QTWO150 1500 GPM Midship Pump
  • 500-Gallon MTECH Poly Water Tank
  • One (1) 20-Gallon
  • one (1) 30-Gallon Foam Tanks
  • Foam Pro 2002 Classic “A” and “B” Foam Systems
  • Custom Mounting Equipment
Click here to download a line drawing.

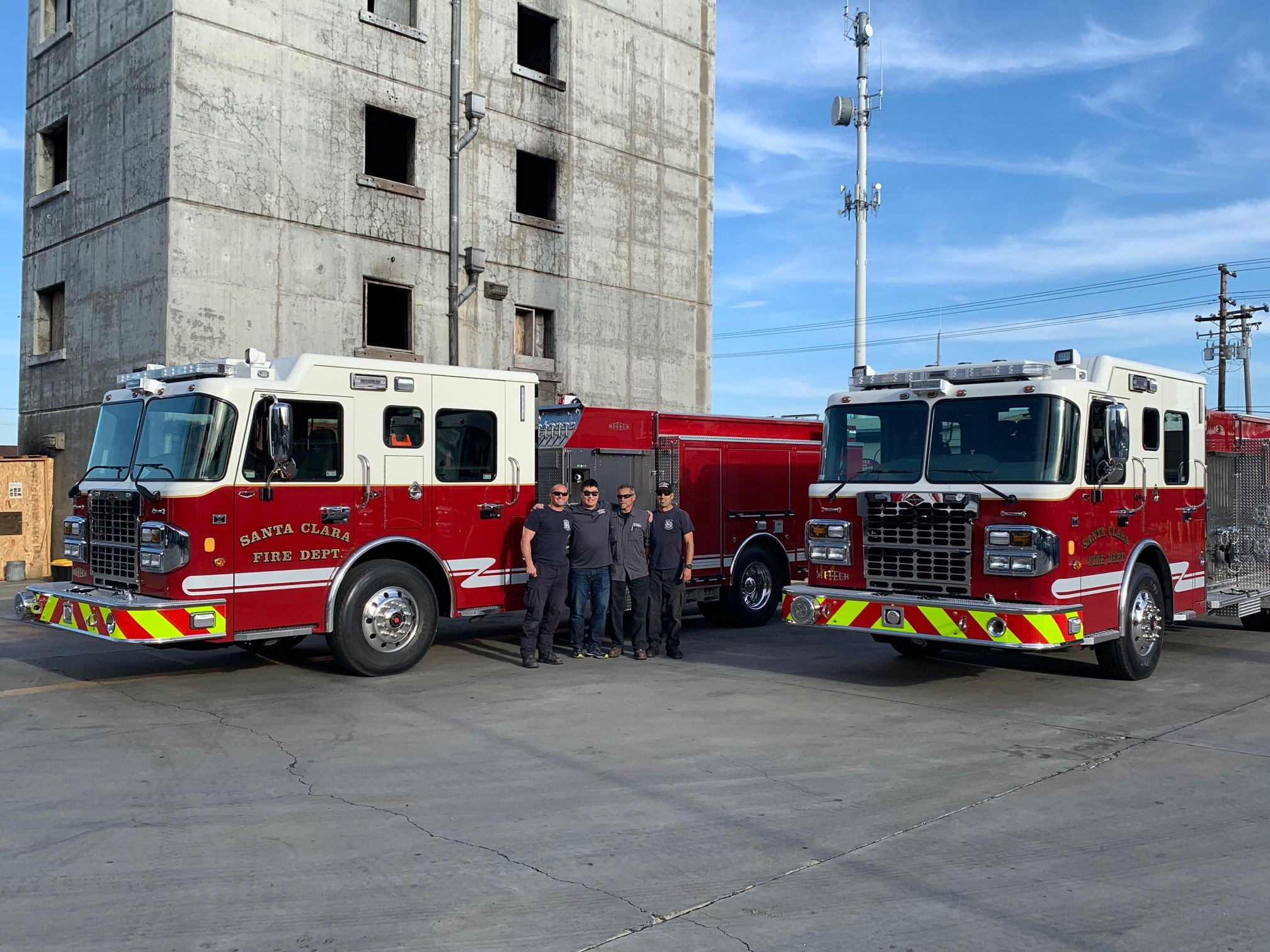

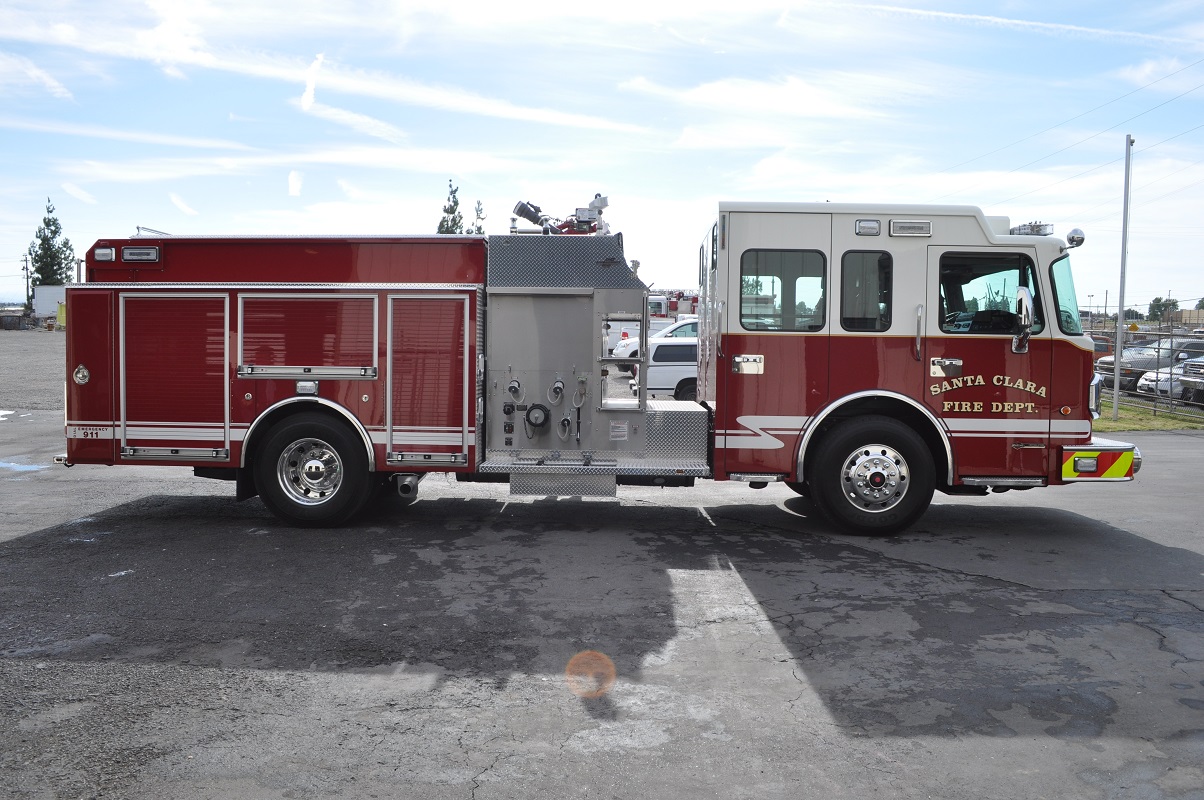

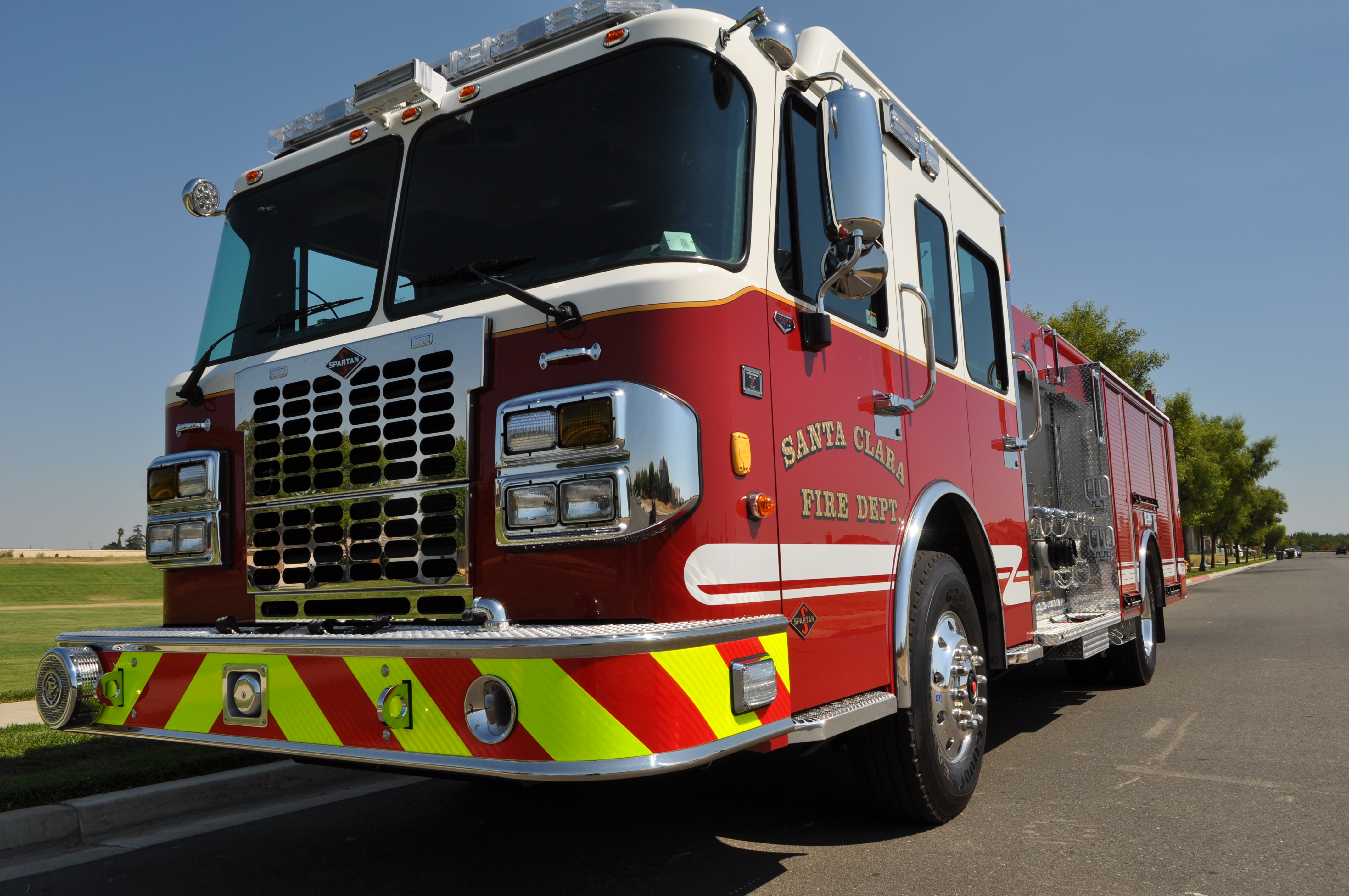

SANTA CLARA CITY FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star MFD Chassis
  • 6-Person Seating, 193″ Wheelbase
  • Cummins ISX-9 450 H.P. Engine
  • Allison 3000 EVS Automatic Transmission
  • Hale QMax150 1500 GPM Midship Pump
  • 500 Gallon MTECH Poly Water Tank
  • 30 Gallonl Foam Tanks
  • Akron 3095 Portable Educator with On-Board Foam Access Kit
  • Whelen LED Lighting Package
  • Honda 110 Volt Generator
  • MSA 5200 Thermal Imagining Camera
Click here to download a line drawing.

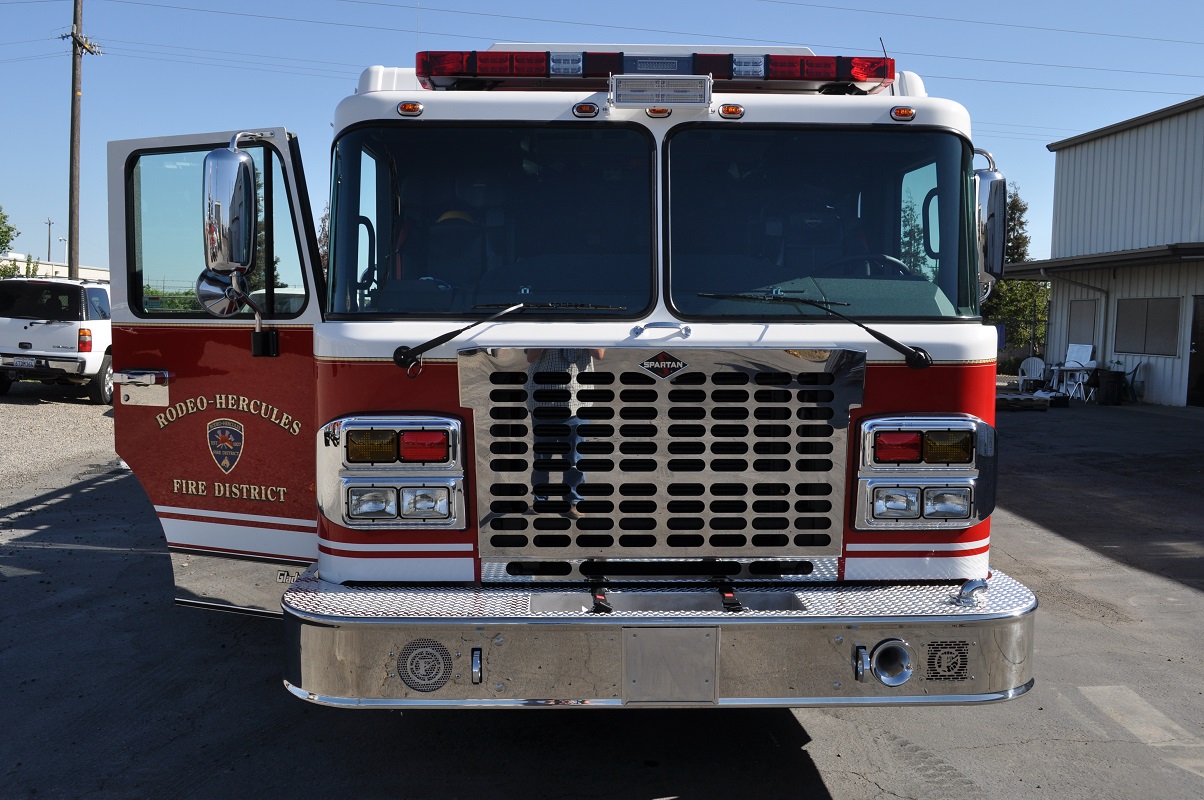

RODEO HERCULES FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan LFD Gladiator Chassis
  • 6-Person Seating, 185.5″ Wheelbase
  • Cummins ISX-15 500 H.P. Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale Q-two 2000 GPM Midship Pump
  • 500 Gallon MTECH Poly Water Tank
  • Two (2) 20 Gallon External Foam Tanks
  • Foam Pro 2002 Class “A” and “B” Foam Systems
  • NFPA Warning Light Package
Click here to download a line drawing.

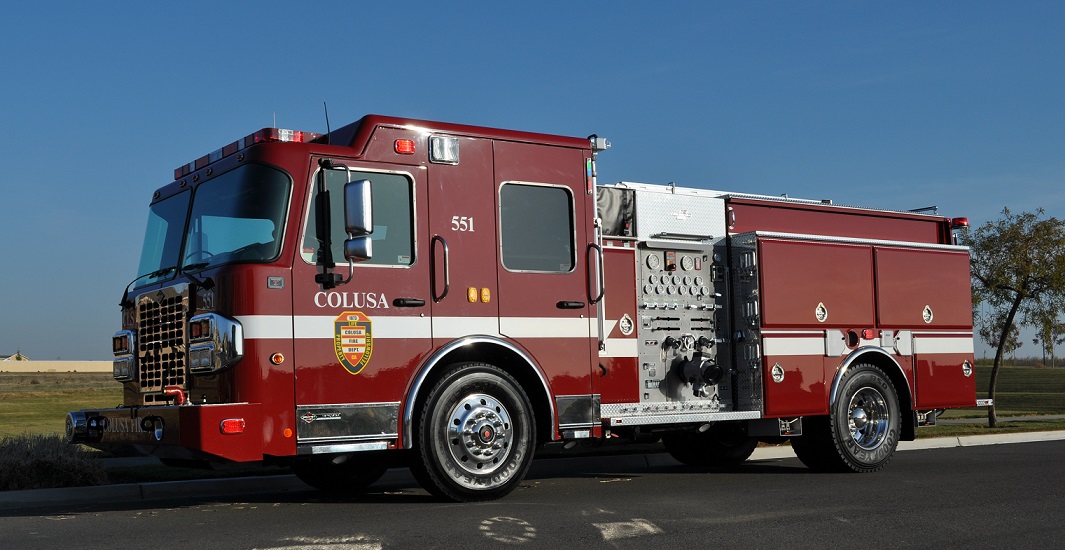

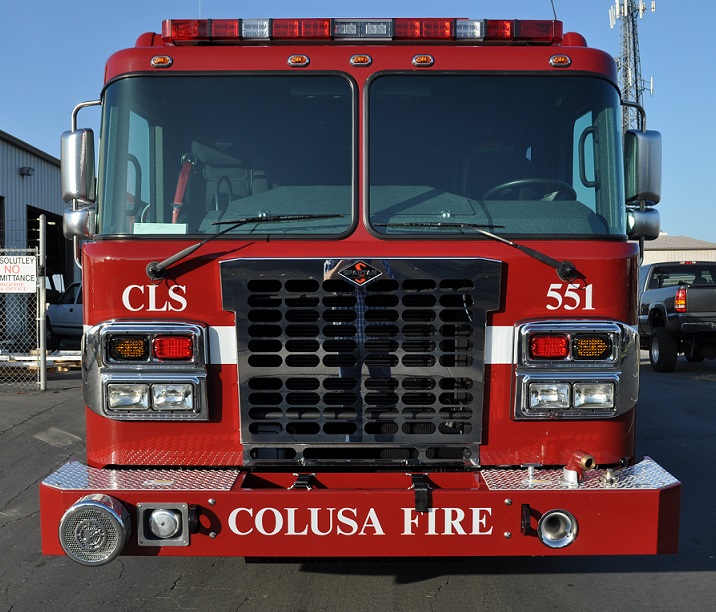

COLUSA FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star SMFD Chassis
  • Cummins 380 h.p. engine
  • Hale Qmax 1500 GPM Two-Stage Midship Pump
  • Darley 1-1/2 AGE Auxiliary Pumping Unit with 24 h.p. Kubota Diesel Engine
  • 650 Gallon M-tech/Blackline Poly Water Tank
  • Zico Single Arm Electric Ladder Rack
  • Whelen LED Lighting Package
  • Foam Pro 1600 Foam Proportioning System with 30 Gallon Poly Tank
Click here to download a line drawing.

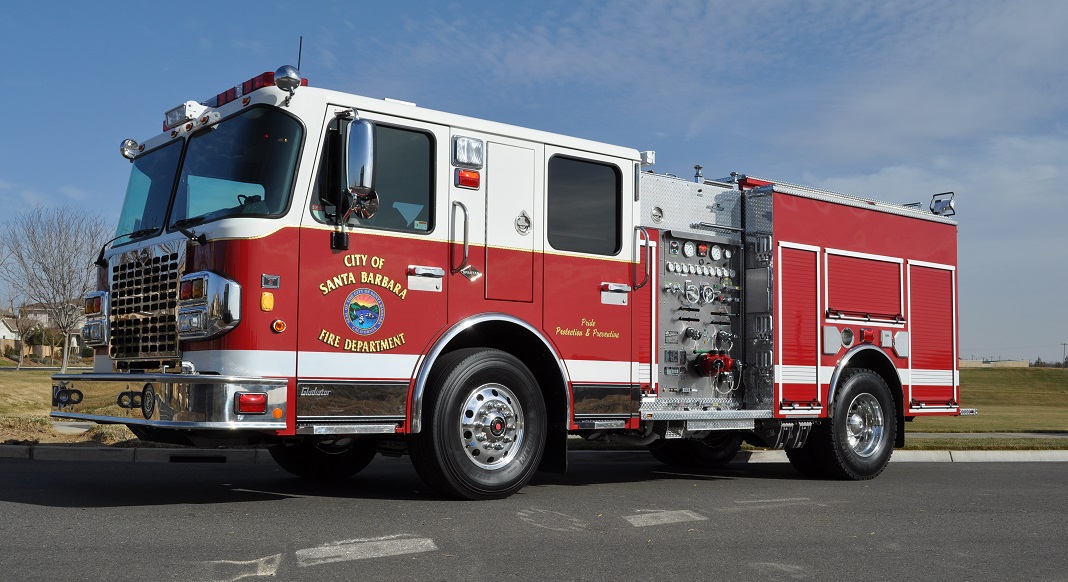

SANTA BARBARA CITY FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Gladiator MFD Chassis
  • Cummins 450 h.p. engine
  • Hale Qmax 1500 GPM Single Stage Midship Pump
  • Hale CBP PTO-Driven Booster Pump
  • 750 Gallon M-tech/Blackline Poly Water Tank
  • Zico Electric Ladder Rack
  • Whelen LED Lighting Package
  • Hale Foam Logix Foam Proportioning System with 20 Gallon Poly Tank

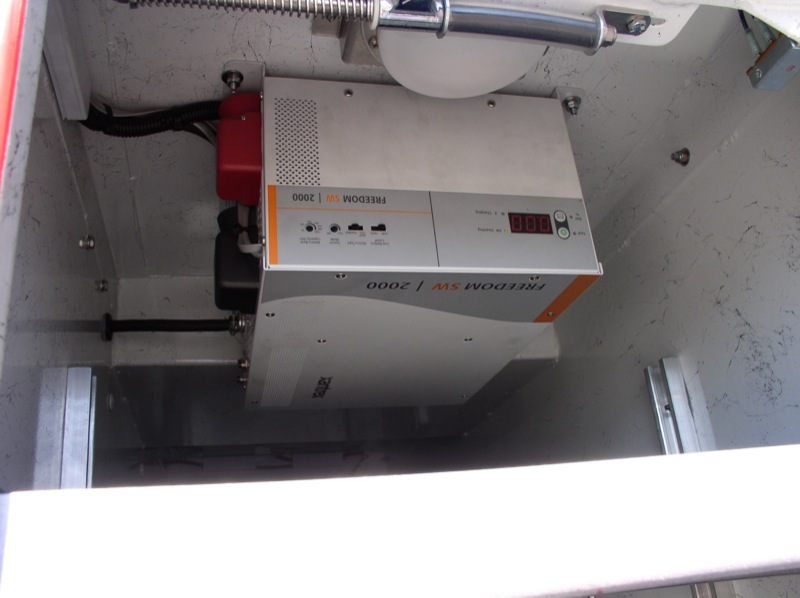

  • Xantrex 2.0 Inverter/Charger
  • ROM Corporation Roll-Up Doors
  • Hannay Hose Reel
Click here to download a line drawing.

SANTA MARIA FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan LFD Gladiator Chassis
  • 6-Person seating, 188″ Wheelbase
  • Cummins ISX-15 500 h.p. Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale Q-Max 2000 GPM Midship Pump
  • 600 MTECH Gallon Poly Water Tank
  • Two (2) 12 Gallon External Foam Tanks
  • Foam Pro 2001 Class “A” and “B” Foam Systems
  • Honda 5000 Watt Generator
Click here to download a line drawing.

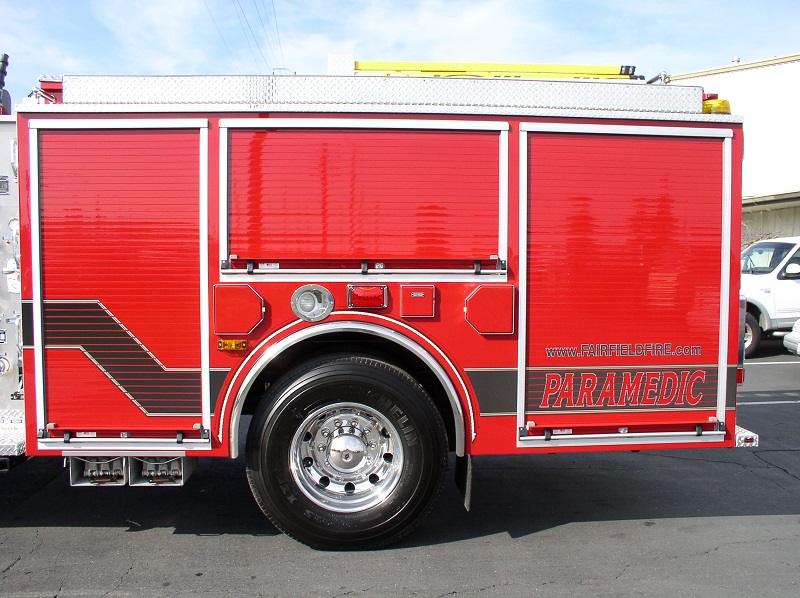

FAIRFIELD FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Gladiator LFD Chassis
  • 6-Person seating, 179″ Wheelbase
  • Cummins ISL 425 HP Engine
  • Allison 3000 EVS Automatic Transmission
  • Waterous CSU 1500 GPM Midship Pump
  • 500 Gallon Poly Water Tank
  • 20 Gallon Stainless Steel Foam Tank
  • Foam Pro 1600 Class “A” Foam System
  • Smart Power 6000 Watt Hydraulic Generator
  • Hannay Electric Rewind Cord Reel
  • Three (3) Whelen PSTANK Water Level Gauges
  • Federal PA-300 Electical Siren with Mic
  • Whelen Emergency Lighting System
Click here to download a line drawing.

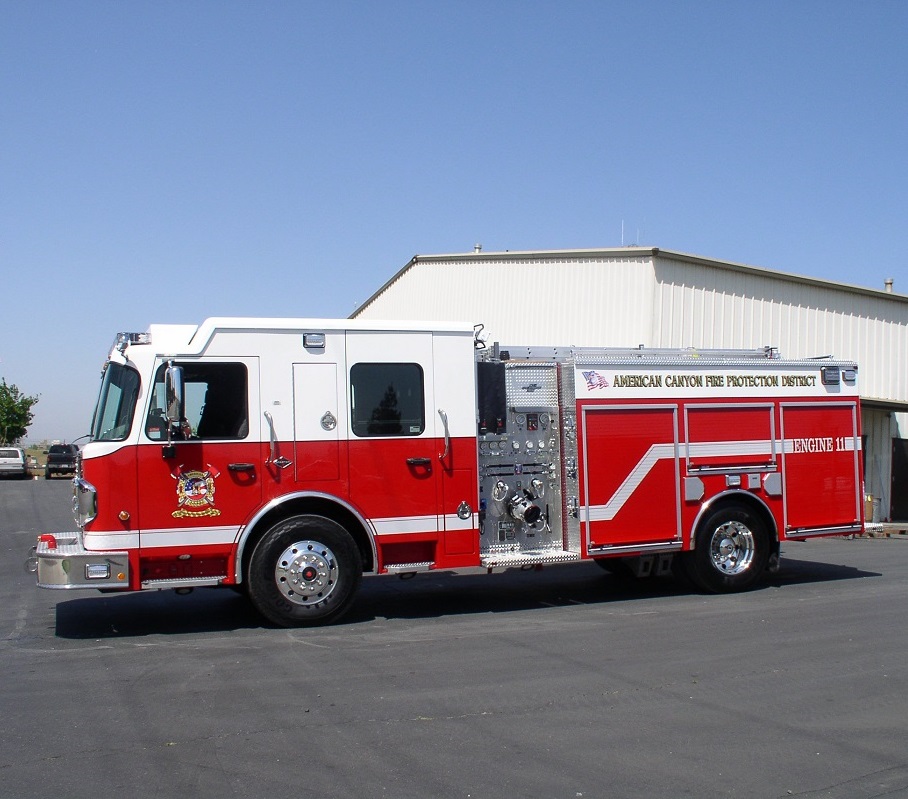

AMERICAN CANYON FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star LFD Chassis
  • 4-Person seating, 187″ Wheelbase
  • Cummins ISL-9 450 h.p. Engine
  • EMS Compartments Each Cab Side w/ Dual access
  • Allison 3000 EVS Automatic Transmission
  • Hale Q-Max 1500 GPM Single Stage Midship Pump
  • 500 Gallon MTEC Poly Water Tank
  • 25 Gallon External Foam Tank
  • Foam Pro 2001 Class “A” Foam System
  • All Brass Piping System With Akron Discharge Valves
  • 215 Cubic Ft. Equipment Storage Body Design!!!
  • Zico Dual-Arm Overhead Ladder Storage System
  • Honda 5000 Watt Remote Start Gas Generator System
  • Electric Cord Reel – Recessed In Pump Enclosure
  • Weldon VMUX Multi-Plex Wiring System
  • Robinson Roll Up Compartment Doors – Painted Finish
Click here to download a line drawing.

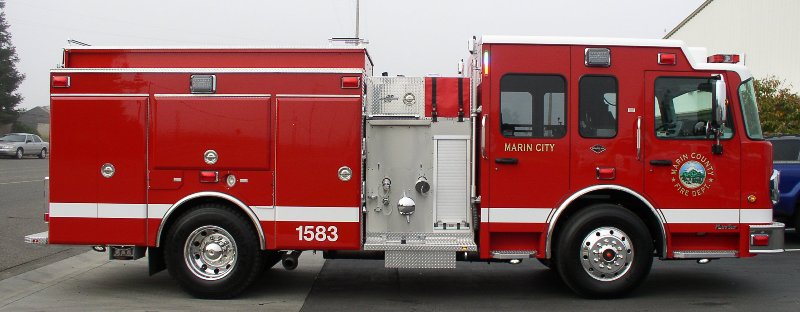

MARIN COUNTY FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star MFD Chassis
  • 6-Person seating, 169″ Wheelbase
  • Cummins ISL-9 450 h.p. Engine
  • Allison 3000 EVS Automatic Transmission
  • Hale Q-Max 1500 GPM Single Stage Midship Pump
  • 500 Gallon MTEC Poly Water Tank
  • 20 Gallon External Foam Tank
  • Foam Pro 2001 Class “A” Foam System
  • Internal Ground Ladder Storage System
  • Electric Operation Hosebed Cover System
  • Two (2) FRC Spectra LED Telescoping Flood Lights
  • FRC Spectra LED Brow Light
  • Whelen LED Emergency Warning Light System
Click here to download a line drawing.

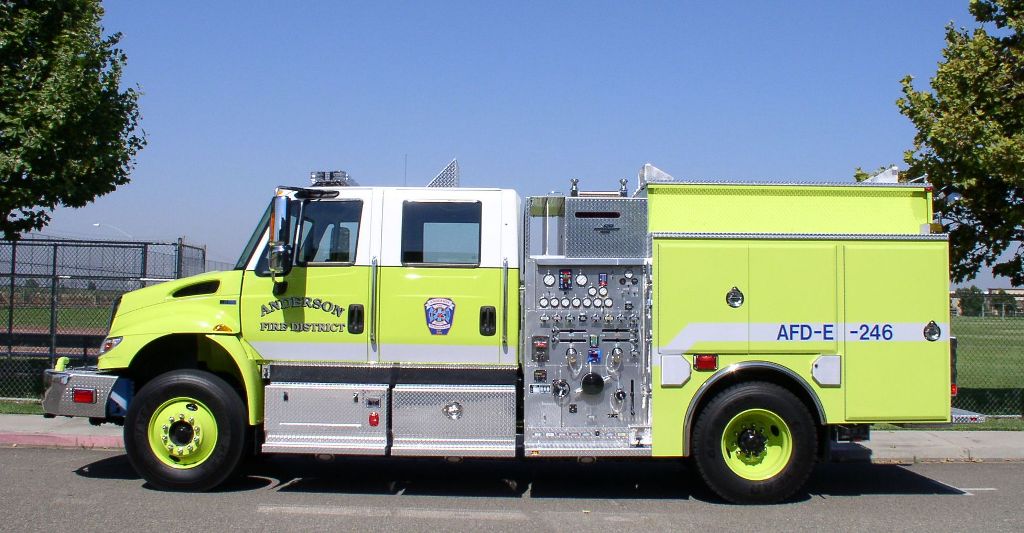

ANDERSON FIRE DISTRICT TYPE II PUMPER

Specifications

  • International 4400 4x2 Crew Cab Chassis
  • 5-Person seating, 189” Wheelbase
  • MaxxForce 9 330 h.p. Engine
  • Allison 3000 EVS Automatic Transmission
  • Hale Qflo 1250 GPM 2-Stage Midship Pump
  • Hale HPX100-BD26 Water-Cooled Auxiliary Pumping Unit
  • 500 Gallon MTEC Poly Water Tank
  • 20 Gallon Foam Tank
  • Foam Pro 2001 Class “A” Foam System
  • Foam Pro Power Fill System
  • Hale MIV Manual Inlet Valve
  • Overhead Manual Ground Ladder Storage
  • Weldon VMUX Multi-Plex Wiring System
  • Whelen LED Emergency Warning Light System
Click here to download a line drawing.

ESPARTO FIRE DEPARTMENT TYPE 2 PUMPER

Specifications

  • International 4400 4X2 Chassis
  • MaxxForce 9 330 h.p. Engine
  • Hale Qmax 1250 GPM Single Stage Midship Pump
  • Hale HPX100 Auxiliary Pumping Unit with 24 h.p. Kubota Diesel Engine
  • 500 Gallon M-tech/Blackline Poly Water Tank
  • Whelen LED Lighting Package
  • Foam Pro 2001 Foam Proportioning System
  • Foam Pro Power Refilling System
  • Hannay Hose Reel
Click here to download a line drawing.

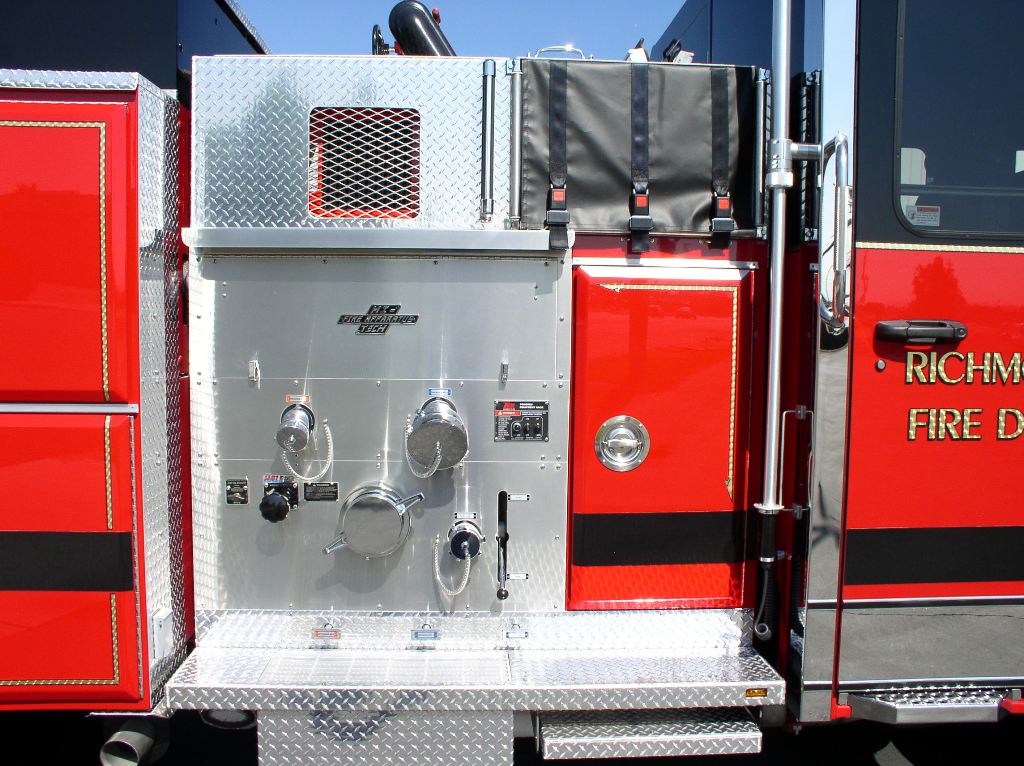

RICHMOND FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star MFD Chassis
  • 6-Person seating, 174.5″ Wheelbase
  • Cummins ISL-9 450 h.p. Engine
  • Allison 3000 EVS Automatic Transmission
  • Hale Q-Max 1500 GPM Single Stage Midship Pump
  • 600 Gallon MTEC Poly Water Tank
  • 22 Gallon Integral Foam Cells
  • Hale Foam Master 3.3 Class “A” Foam System
  • Zico Overhead Ladder Storage System
  • Harrison Hydraulic 6KW Generator System
  • (2) Havis Pioneer LED Telescoping Flood Lights
  • Hannay Electric Cord Reel
  • Hannay Hose Reel
  • Whelen LED Emergency Warning Light System
Click here to download a line drawing.

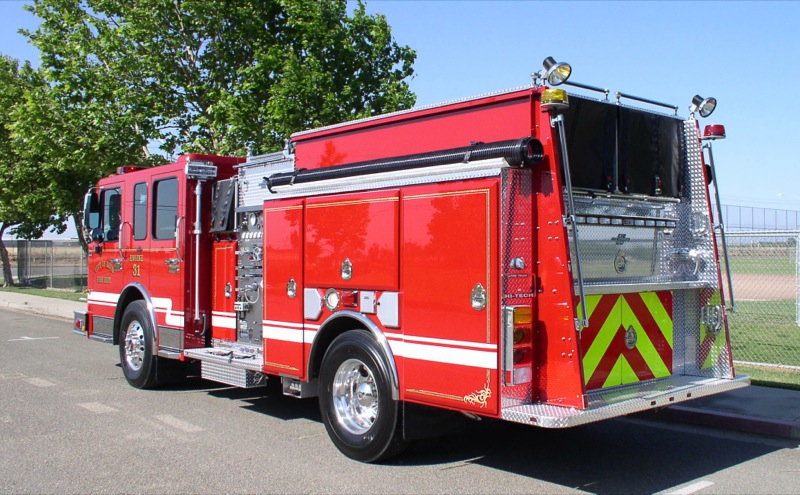

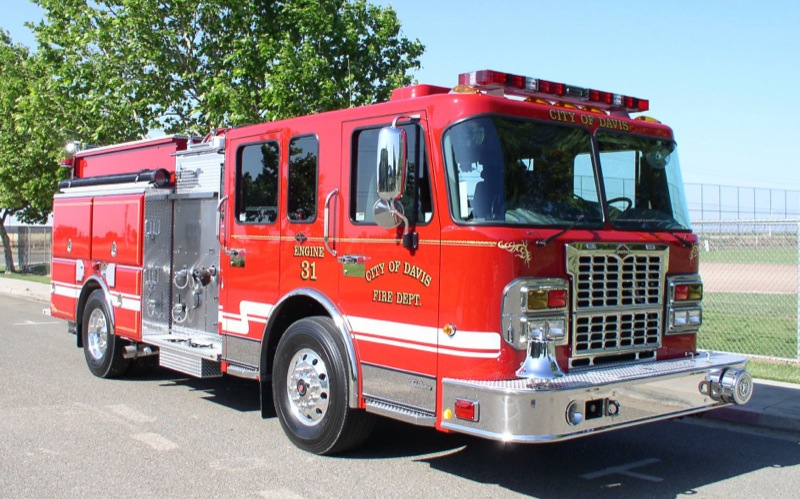

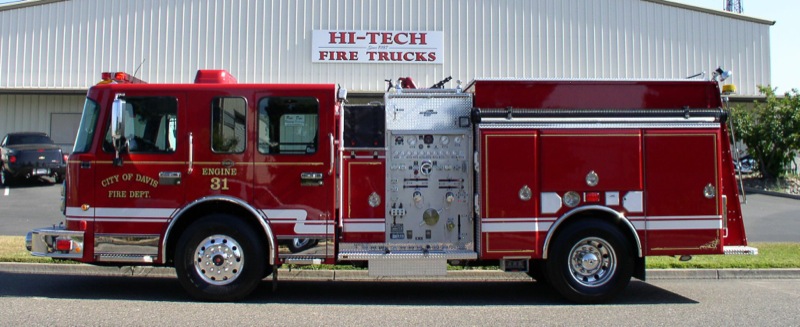

DAVIS FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Gladiator MFD Chassis
  • 6-Person seating, 174.50″ Wheelbase
  • Caterpillar C13 525 h.p. Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale QMAX 1500 GPM Single Stage Midship Pump
  • Hale CBP-4 PTO Auxiliary Pump
  • 500 Gallon MTEC Poly Water Tank
  • 30 Gallon Integral Foam Cell
  • Hale Foam Logix 3.3 Class “B” Foam System
  • All Brass Piping System
  • Hale Total Pressure Master Relief System
  • Through-Tank Ground Ladder Storage
  • 1600 Watt Redi-Line Power Inverter System
  • Whelen LED Warning Light System
Click here to download a line drawing.

NORTHSTAR FIRE PROTECTION DISTRICT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star MFD 4x4 Chassis
  • 4-Person seating, 185″ Wheelbase
  • Cummins ISL 425 h.p. Engine
  • Allison 3000 EVS Transmission
  • Hale Q-max 1500 GPM Midship Pump
  • 500 Gallon Poly Water Tank
  • Foam Pro 1600 Class “A” Foam System
  • 30 Gallon Poly Foam Cell
  • Brass Piping System
  • Class 1 Captain PSG System
  • Class 1 Engine Status Center
  • LED Compartment Lighting
  • Weldon VMUX Multiplex System
Click here to download a line drawing.

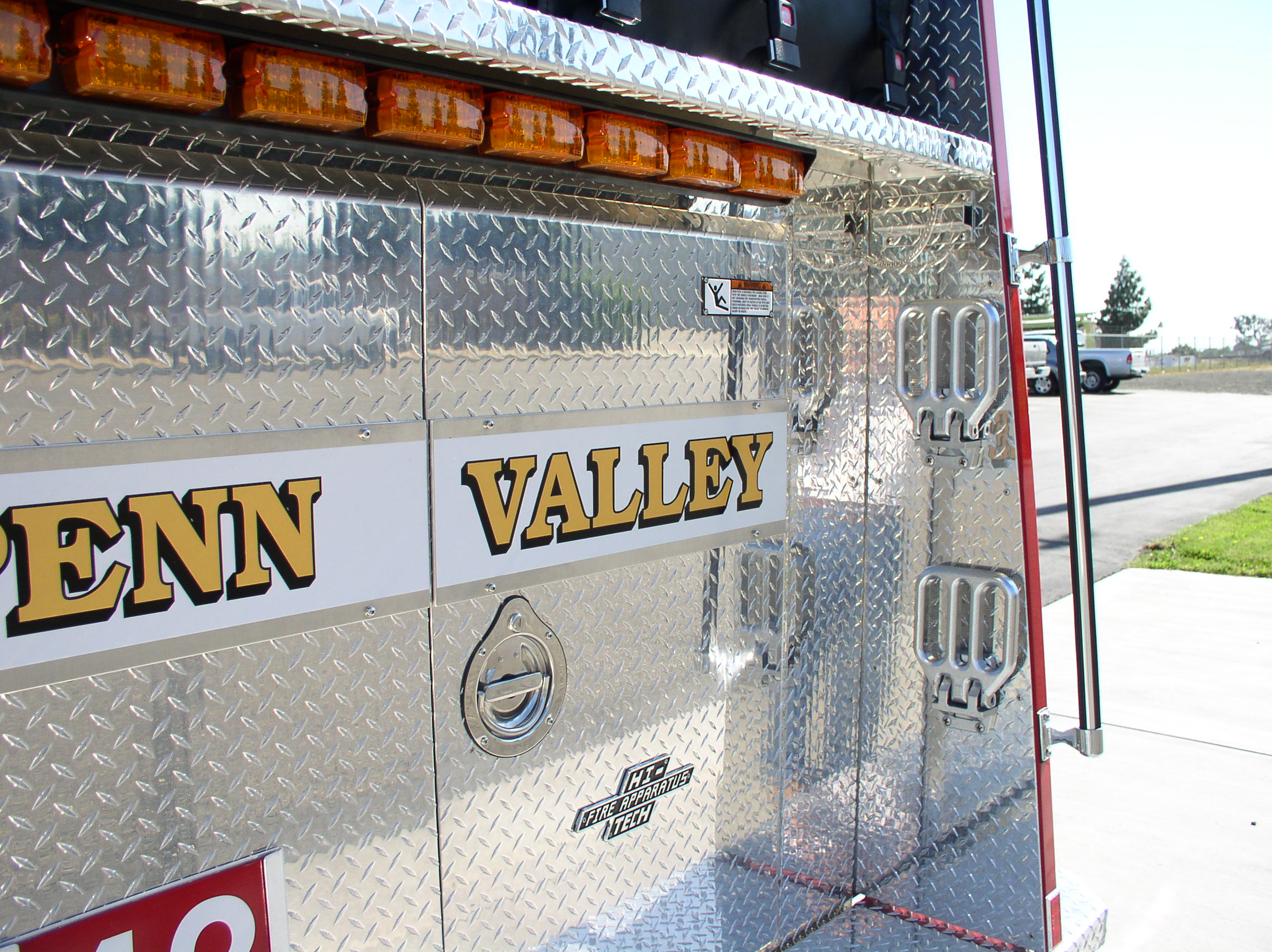

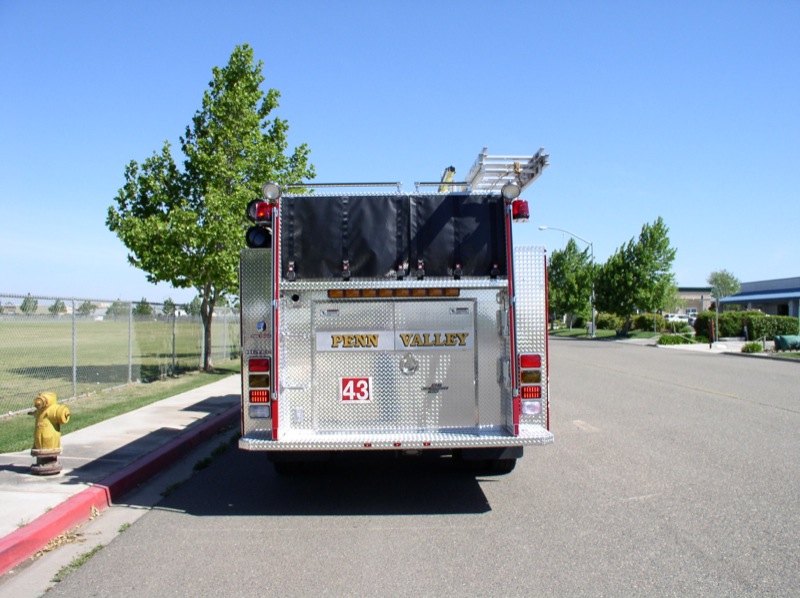

PENN VALLEY FIRE PROTECTION DISTRICT TYPE 1 INTER-FACE PUMPER

Specifications

  • Spartan SMFD “Flat Floor” Chassis
  • Extreme Approach Angle Design
  • 5-Person seating, 174″ Wheelbase
  • Cummins ISL 425 h.p. Engine
  • Hale QMAX 1250 GPM Midship Pump
  • Hale HPX100-BD26 Auxiliary Pump
  • 650 Gallon Steel Epoxy Coated Water Tank
  • Foam Pro 1600 Class “A” Foam System
  • 20 Gallon Stainless Steel Foam Tank
  • Redi-Line 1600 Watt Generator
  • Zico Electric Ground Ladder Storage System
Click here to download a line drawing.

SAN JOSE FIRE DEPARTMENT TYPE 1 PUMPER

Specifications

  • Spartan Gladiator LFD Chassis
  • 6-Person seating, 190” Wheelbase
  • Cummins ISX-15 500 h.p. Engine
  • Allison 4000 EVS Automatic Transmission
  • Hale Q-two 1500 GPM 2-Stage Midship Pump
  • 500 Gallon MTEC Poly Water Tank
  • 20 Gallon & 30 Gallon Integral Foam Cells
  • Foam Pro 2002 Class “A” & “B” Foam System
  • All Brass Piping System

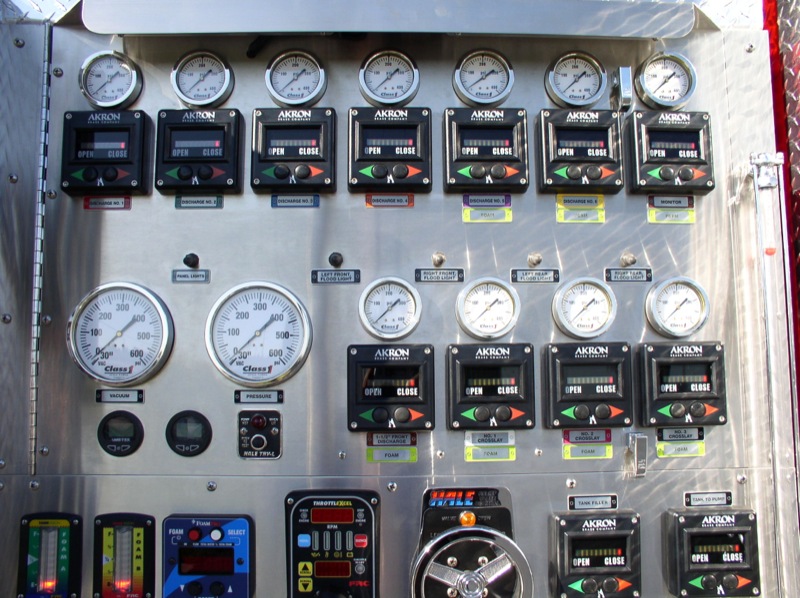

  • Akron Electric Controls All Discharge Valves
  • Through-Tank Ground Ladder Storage
  • Weldon VMUX Multi-Plex Wiring System With Vista Screen
  • Robinson Roll Up Compartment Doors
Click here to download a line drawing.

TUOLUMNE COUNTY FIRE PROTECTION DISTRICT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star SMFD “Flat Floor” Chassis
  • Extreme Approach Angle Design
  • 6-Person seating, 165″ Wheelbase
  • Cummins ISL 425 h.p. Engine
  • Allison 3000 EVS Transmission w/Output Retarder
  • Hale Q-two 1500 GPM 2-Stage Midship Pump
  • 500 Gallon Poly Water Tank
  • Foam Pro 2002 Class “A” & “B” Foam System
  • Dual 20 Gallon Poly Foam Tanks
  • 12 Volt Telescoping Scene Lights
  • Thru-The-Tank Ground Ladder Storage System
Click here to download a line drawing.

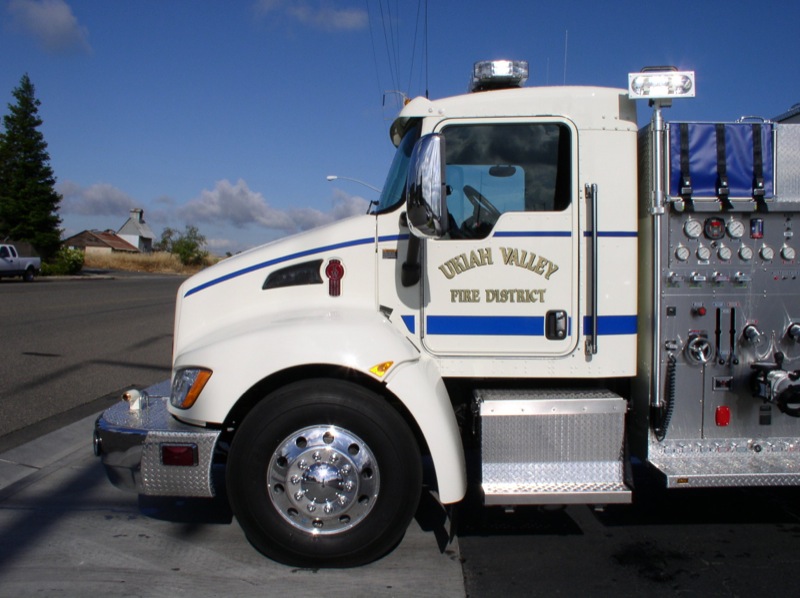

UKIAH VALLEY FIRE PROTECTION DISTRICT TYPE 1 PUMPER

Specifications

  • Kenworth T370 Chassis
  • 3-Person seating, 189″ Wheelbase
  • Paccar PX-8/Cummins ISC 315 h.p. Engine
  • Allison 3000 EVS Transmission
  • Hale Q-pak 1000 GPM Midship Pump
  • 1000 Gallon Poly Water Tank
  • Foam Pro 1600 Class “A” Foam System
  • 20 Gallon Poly Foam Cell
  • 12 Volt Telescoping Magna-Fire HID Scene Lights
  • FRC Tach-Pro Engine Monitoring System
  • Weldon VMUX Multiplex System
Click here to download a line drawing.

FRENCH CAMP FIRE DISTRICT TYPE 1 PUMPER

Specifications

  • Spartan Metro Star MFD Chassis
  • 6-Person seating, 173” Wheelbase
  • Cummins ISC 8.3 @ 360 h.p. Engine
  • Allison 3000 EVS Transmission

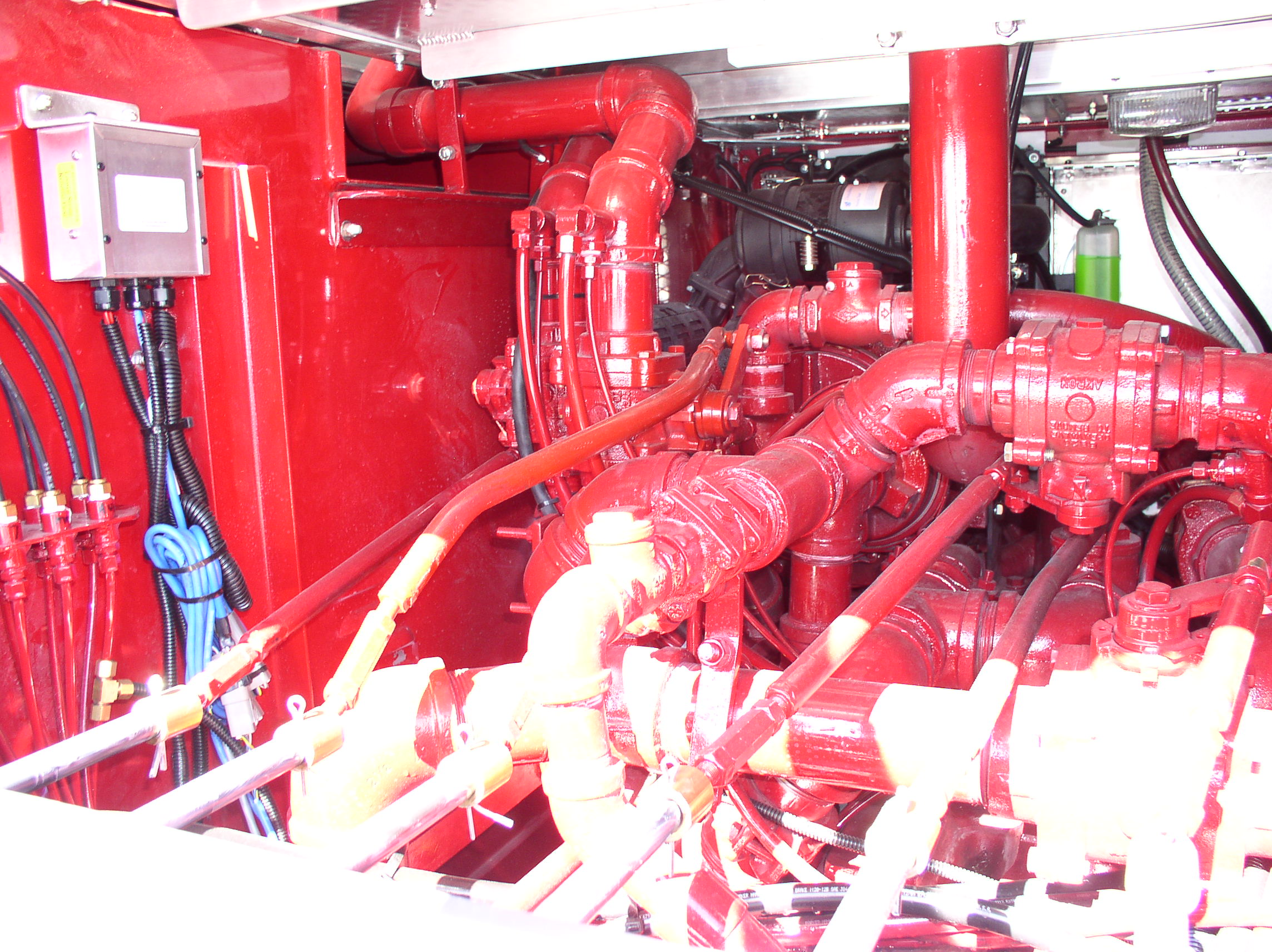

  • Hale QMAX 1500 GPM Midship Pump
  • Waterous Independent Auxiliary Pump
  • 500 Gallon MTEC Poly Water Tank
  • Foam Pro 2001 Class “A” Foam System
  • 25 Gallon Integral Foam Cell

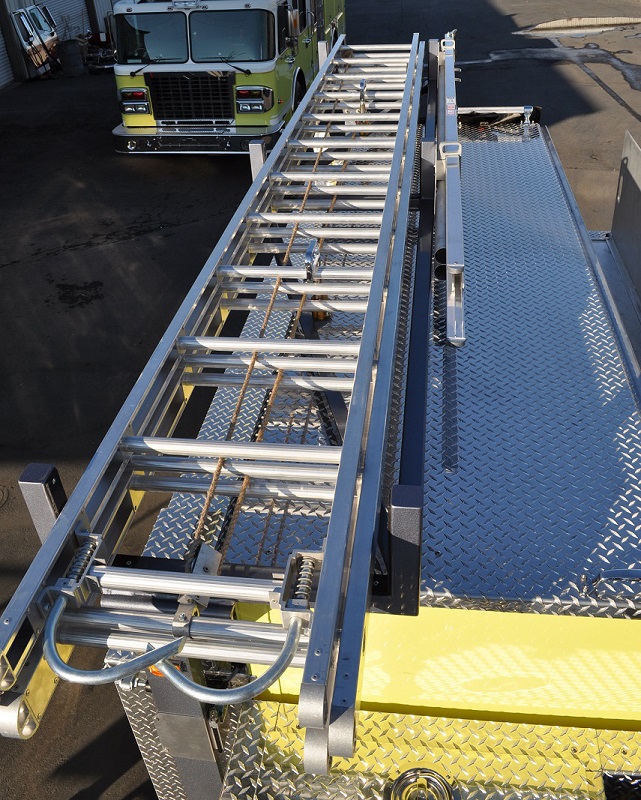

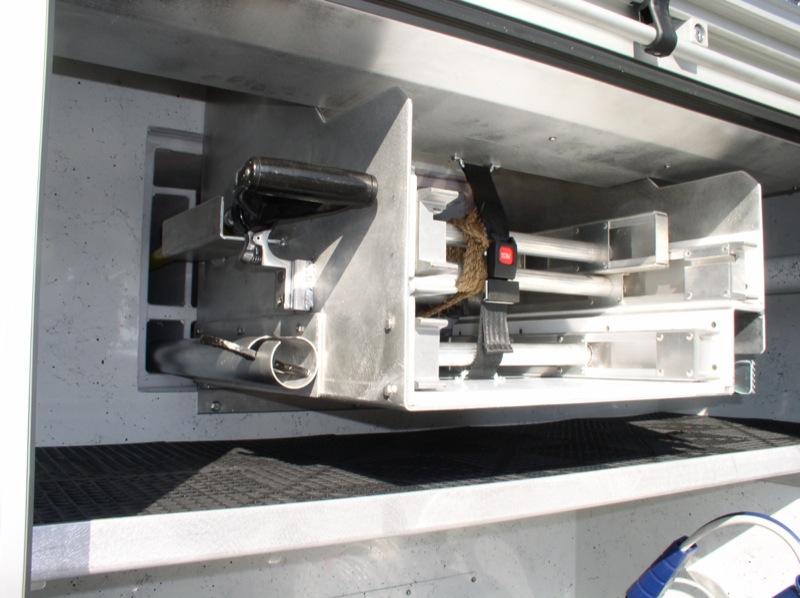

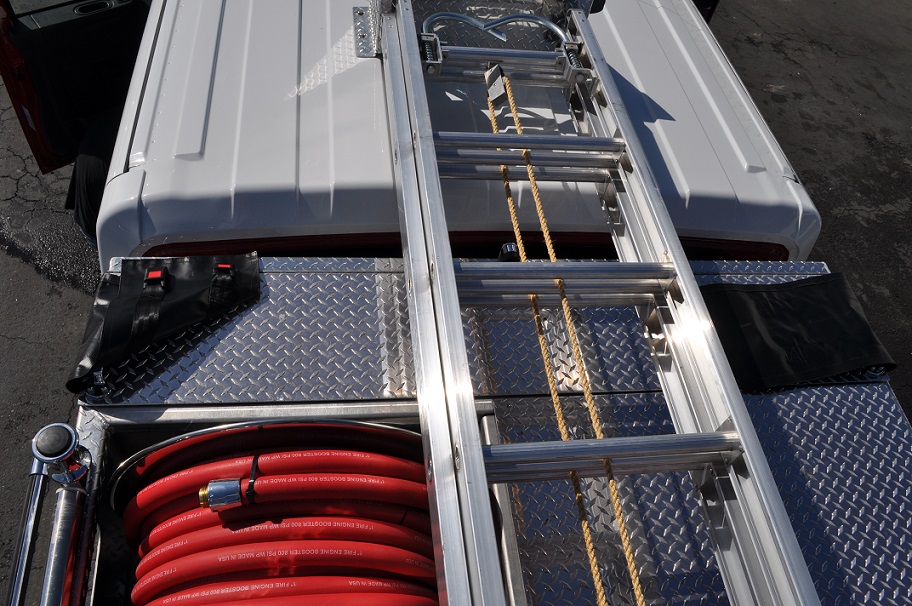

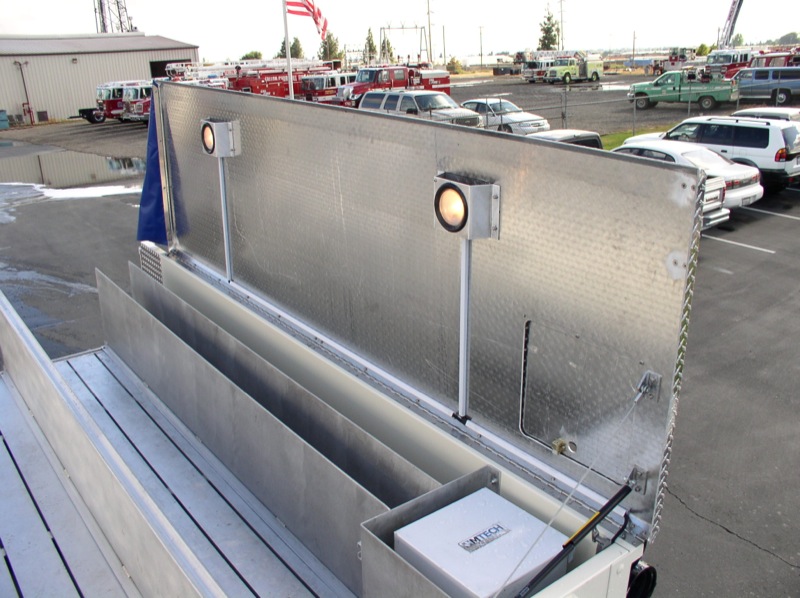

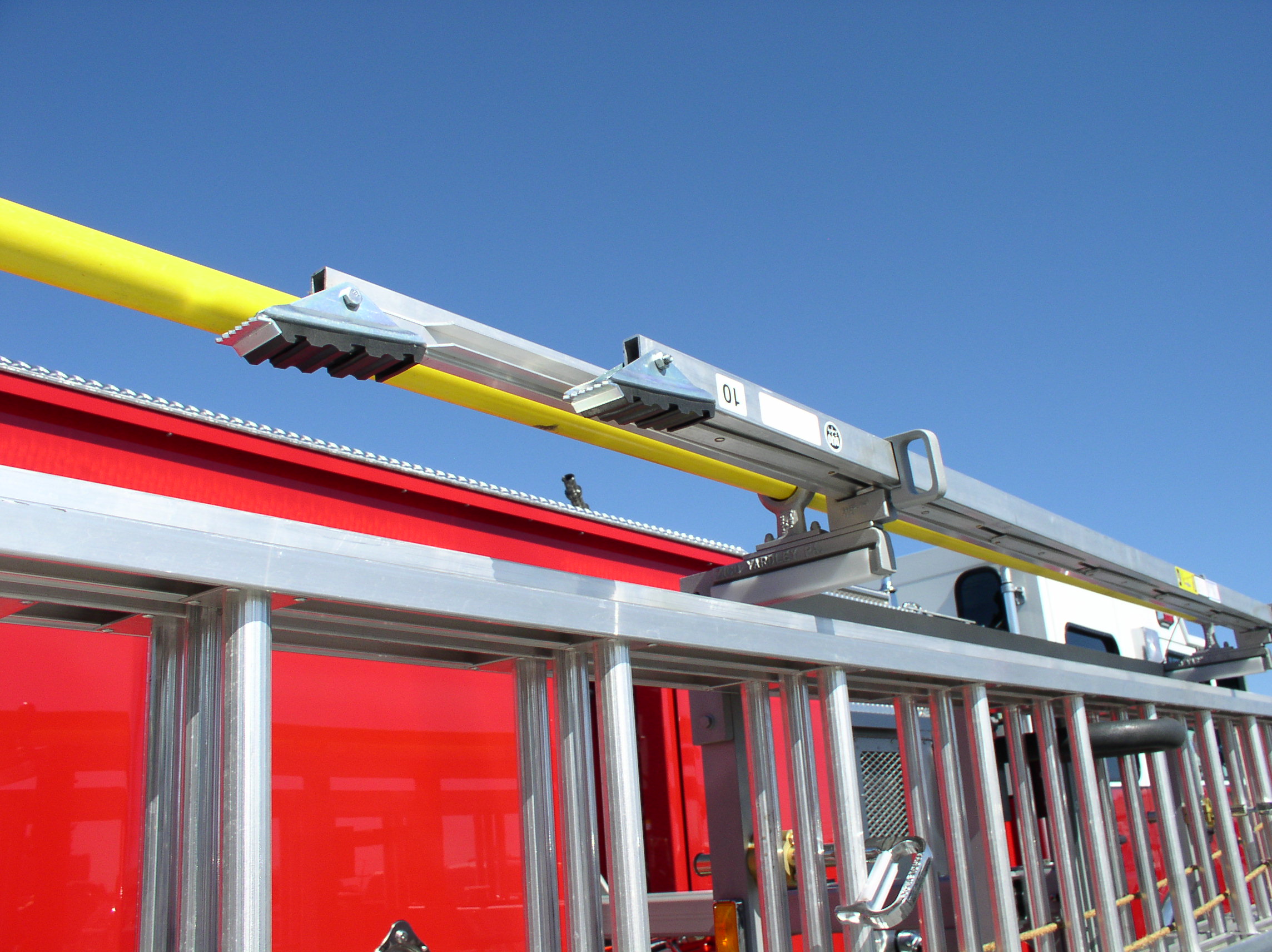

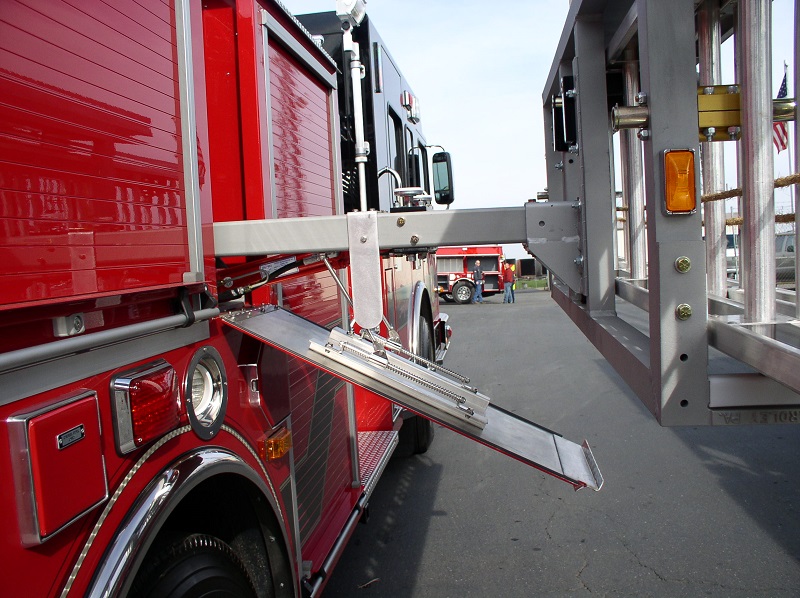

  • Zico Overhead Ground Ladder Storage System
  • Front Suction Inlet
  • FireCom Cab Communication System

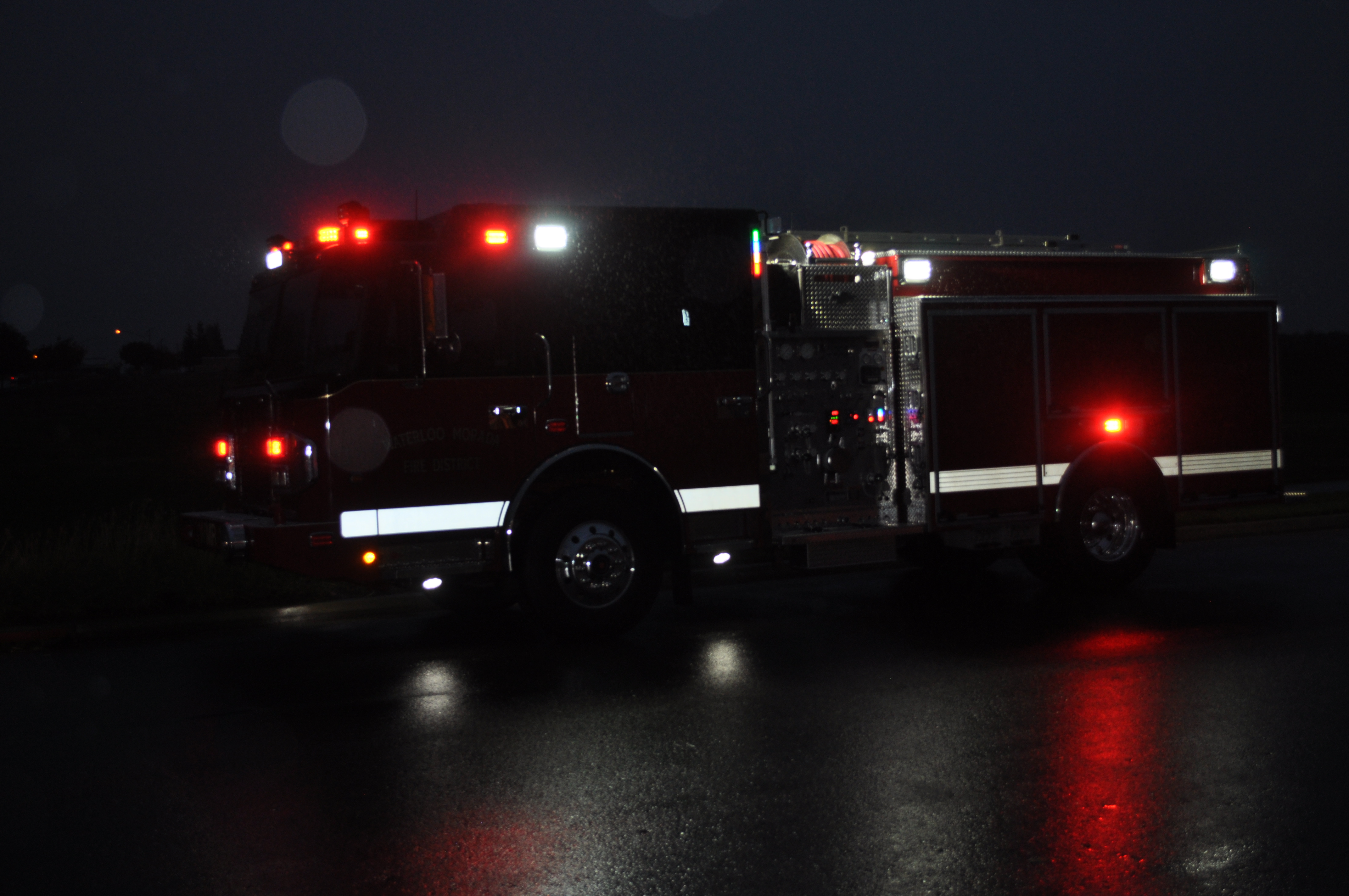

  • Federal LED Emergency Warning Light System
Click here to download a line drawing.

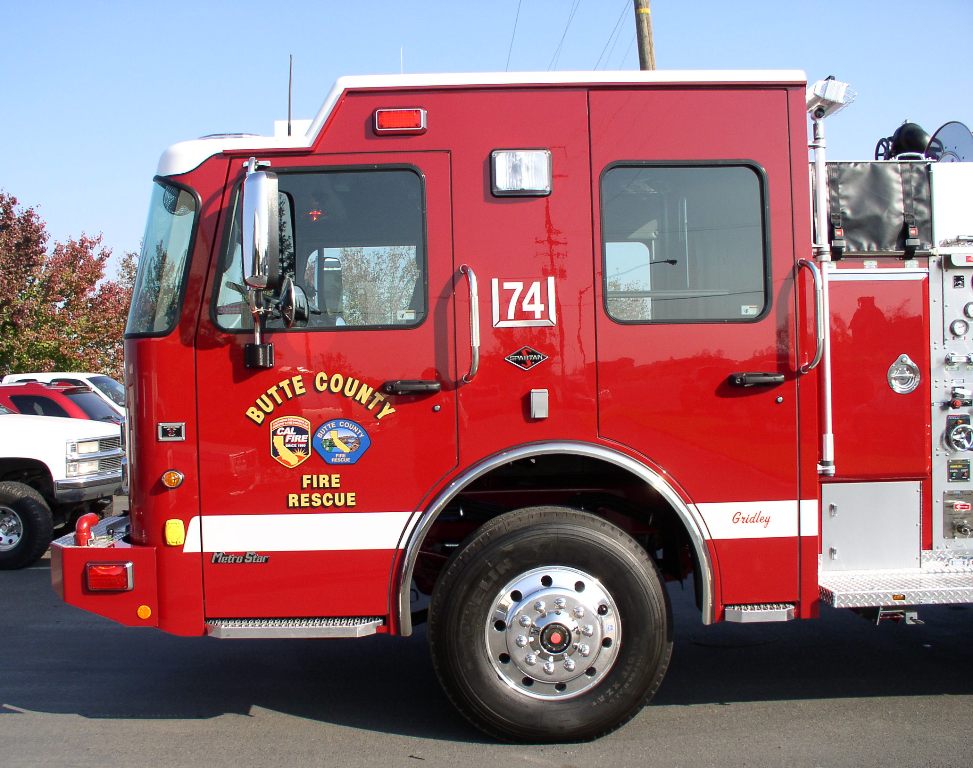

BUTTE COUNTY FIRE PROTECTION DISTRICT TYPE 1 INTER-FACE PUMPER

Specifications

  • Spartan SMFD “Flat Floor” Chassis
  • Extreme Approach Angle Design
  • 5-Person seating, 174” Wheelbase
  • Cummins ISL 425 h.p. Engine
  • Hale QMAX 1500 GPM Midship Pump
  • Hale HPX100-LD23 Auxiliary Pump
  • 650 Gallon Poly Water Tank
  • Foam Pro 1600 Class “A” Foam System
  • 30 Gallon Poly Foam Tank

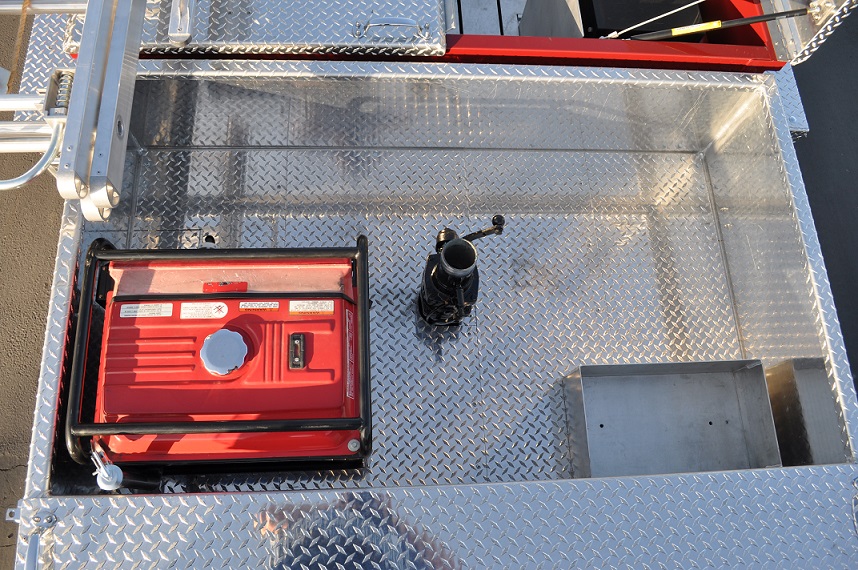

  • Honda 3500 Watt Generator

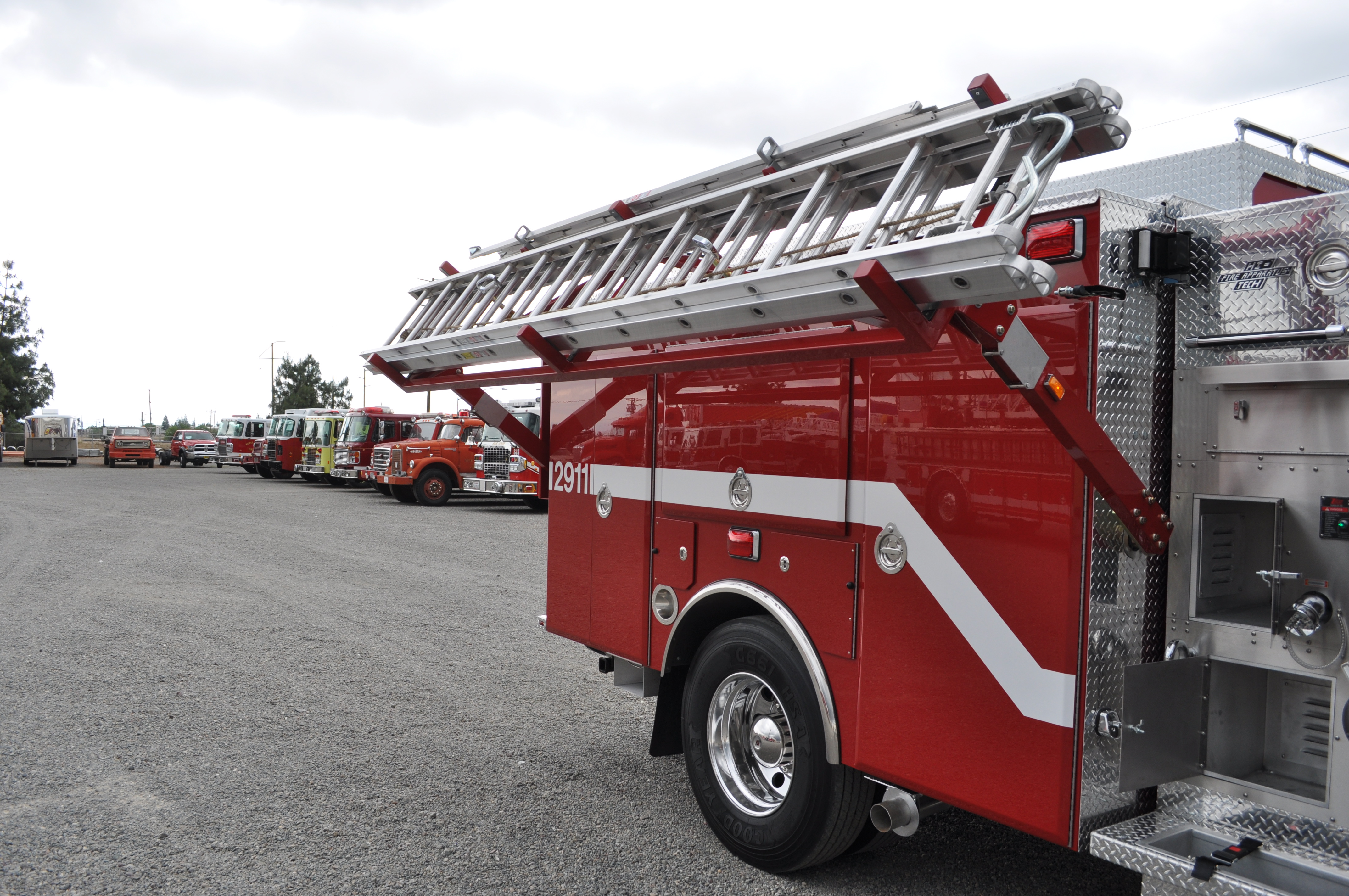

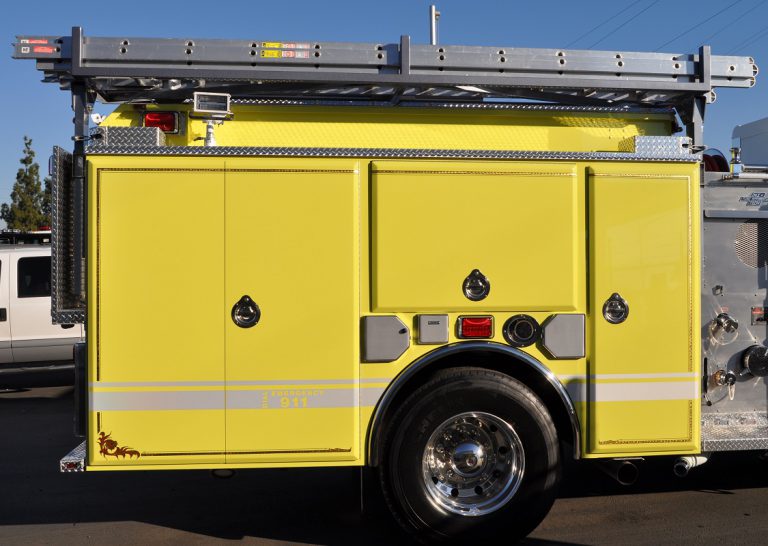

  • Zico Electric Ground Ladder Storage System
Click here to download a line drawing.
California
Proudly made in California, USA.
